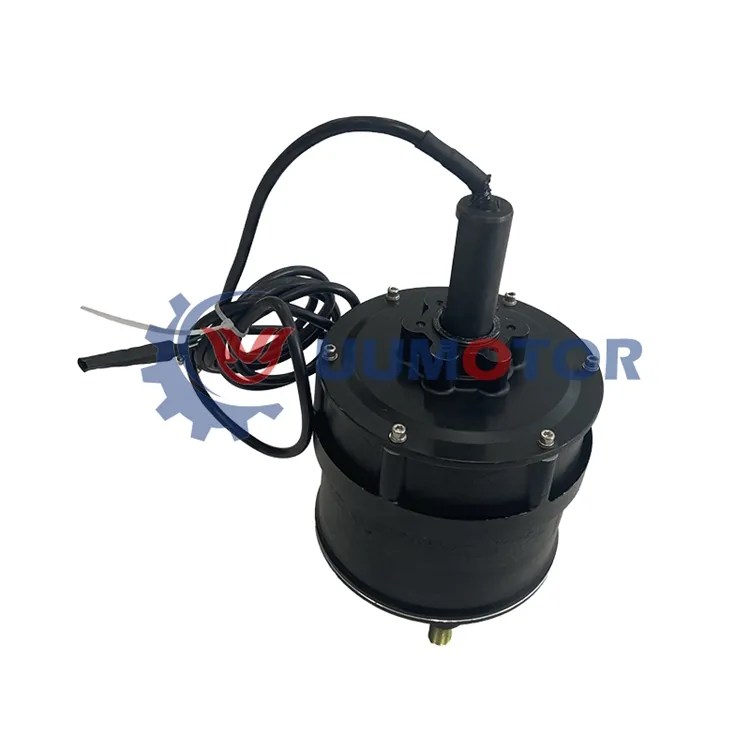

48v 1200w (peak 1500w) geared brushless dc golf cart in-wheel hub motor, 25mm diameter single shaft, it is easy to install ATV or golf cart wheels to the motor hub. . no load speed 150RPM, max current 35A, max torque 200nm.

gear ratio: 1:5 , reversible, gear material: PA66 Nylon, it is ok to upgrade to steel gears, and also now it is ok to add increment magnetic encoder to this motor.

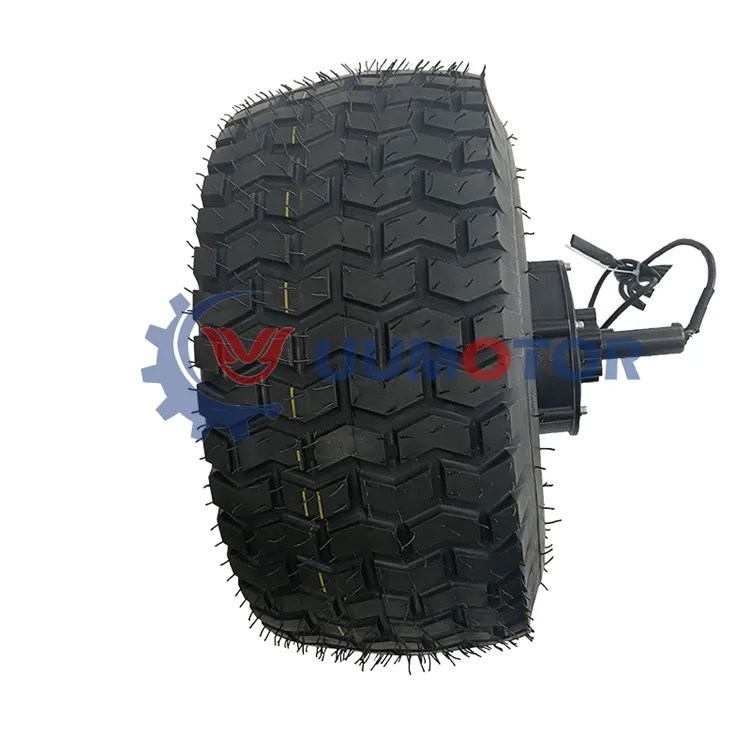

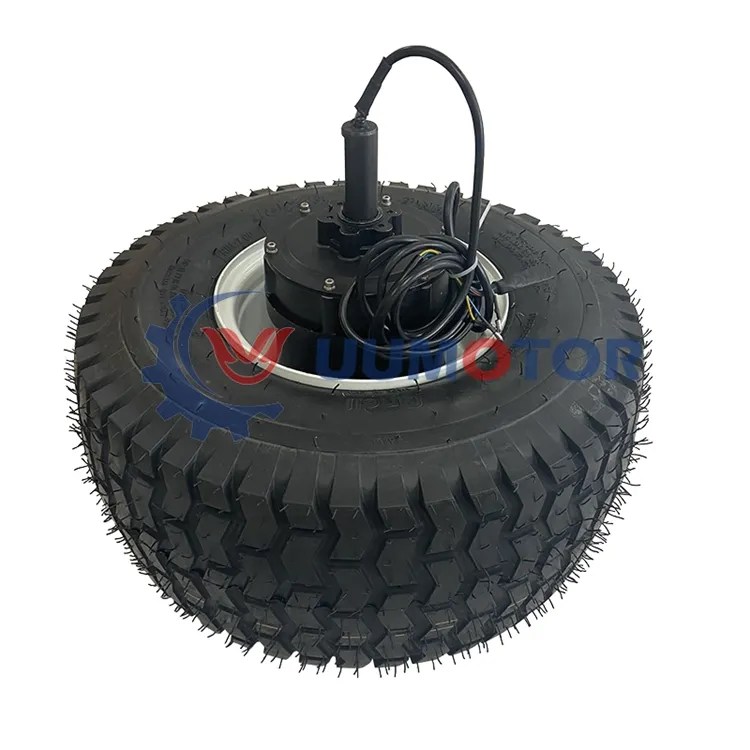

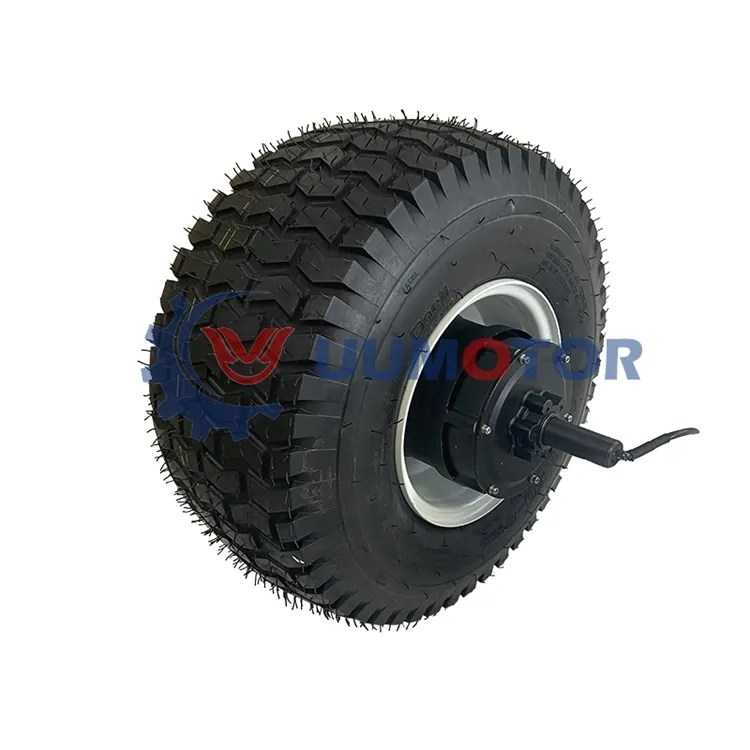

It is ok to install with 16 inch, 18 inch or even larger wheels. The following is the motor in a 18×9.5-8 wheel.

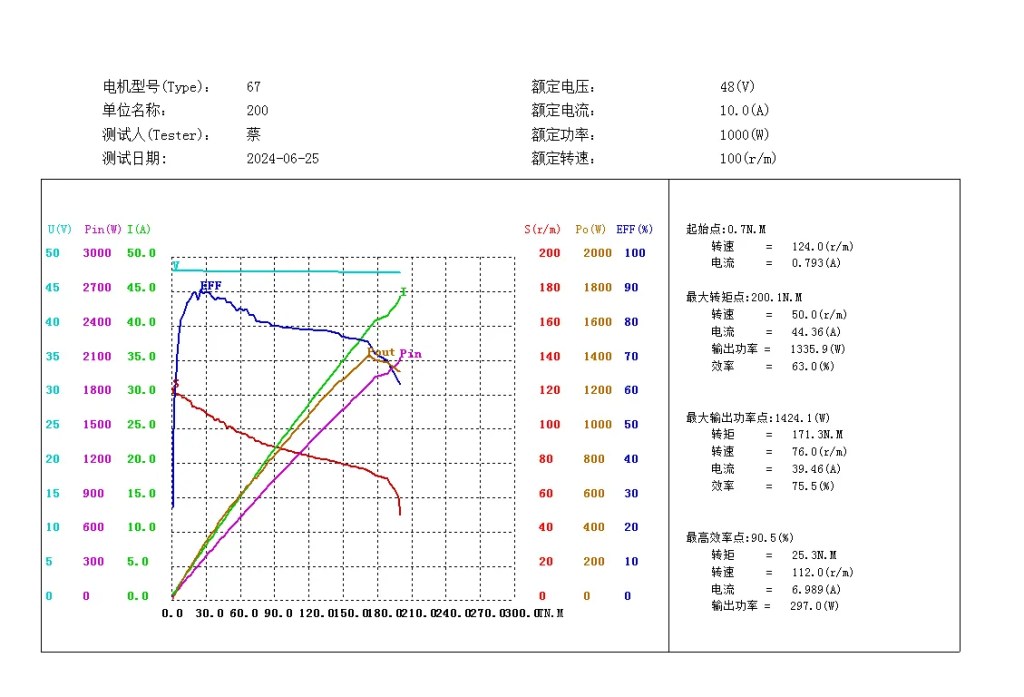

Testing data as follows:
