Home » hub motor » wheelbarrow motor » 150N.m high torque brushless hub motor
- Model: WK6T
- Price: USD165
The default voltage for this series motor is 48V max torque 80nm, 220rpm, it is geared hub motor, reversible, with durable non-marking rubber tire, it is a brushless dc motor with hall sensors and it is ok to add encoder.
Also it is ok to make single shaft version, disc brake version and em braking version
The WK6T series has 6.5 inch and 8 inch tire diameter, the tire is high quality non-marking tire. This hub motor can be geared motor and gearless motor. For the gearless version, the max torque can be 80N.m, 100N.m and 150N.m version. For the gearless motor, it also could be varies power.

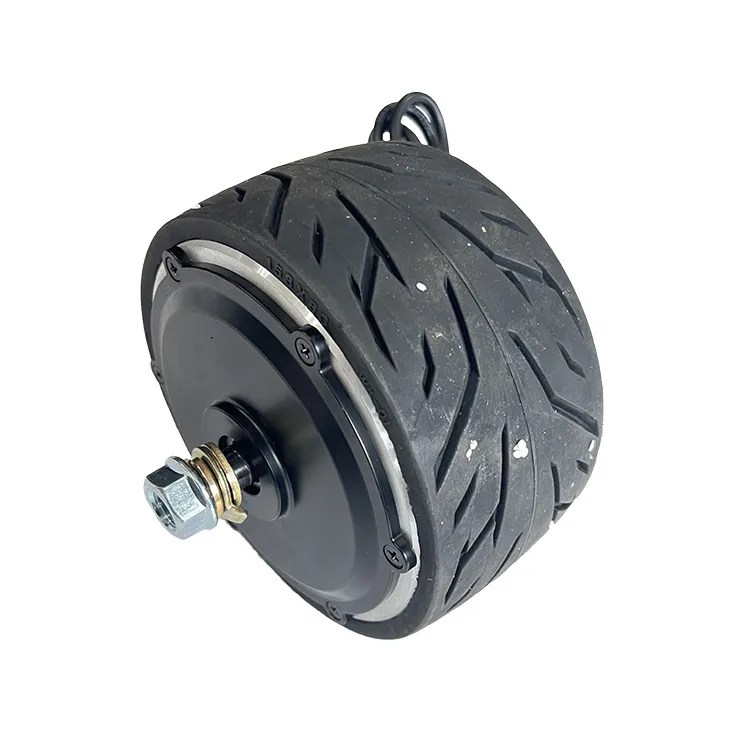

8 inch high torque hub motor

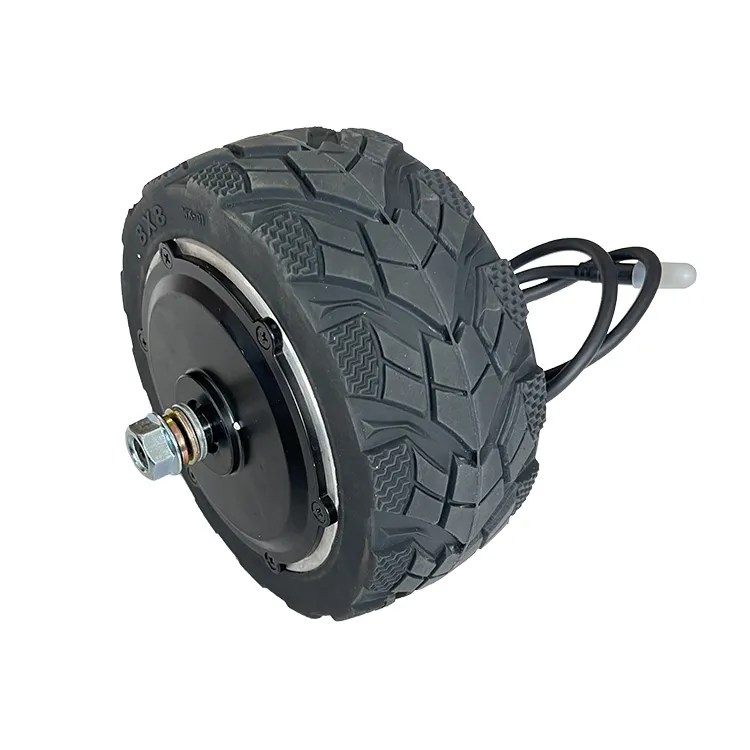

6.5 inch high torque hub motor
| Model Number | WK6T65 | WK6T8 |
| Wheel size | 6.5 inch (170mm) | 8 inch(200mm) |
| Max torque at 48V | 80N.m, 100N.m, 150N.m | 80N.m, 100N.m, 150N.m |
| No load speed at 48V | 220RPM | 220RPM |
| Tire Material | durable non-marking rubber tire | durable non-marking rubber tire |
| Braking type | e braking | e braking |
| Gear type | Nylon gears, metal gears | Nylon gears, metal gears |
| Gear ratio | 1:5 | 1:5 |
| Sensor type | hall sensors, encoder | hall sensors, encoder |
| Others | disc brake, em brake, single shaft available | disc brake, em brake, single shaft available |
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch electric wheelchair motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch hub motor 20 inch hub motor 28 inch electric bike conversion kit 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w motor 3000w scooter motor 3500w hub motor disc braking motor drum brake hub motor dual controllers electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
4 responses to “150N.m high torque brushless hub motor”
hello. i like the 6.5in form factor but i will need a faster speed. do you have a model similar size with lower gear ratio? maybe 1:3. or can you modify this model?
it is ok to make this motor to be gearless version.
Does in lude esc controller?
Does support to move 2 persons?
Yes, it is ok.
