Home » hub motor » wheelbarrow motor » 2025 new 1:10 high gear ratio 200N.m 16 inch tractor tire hub motor
Model: KX16
Price: USD195

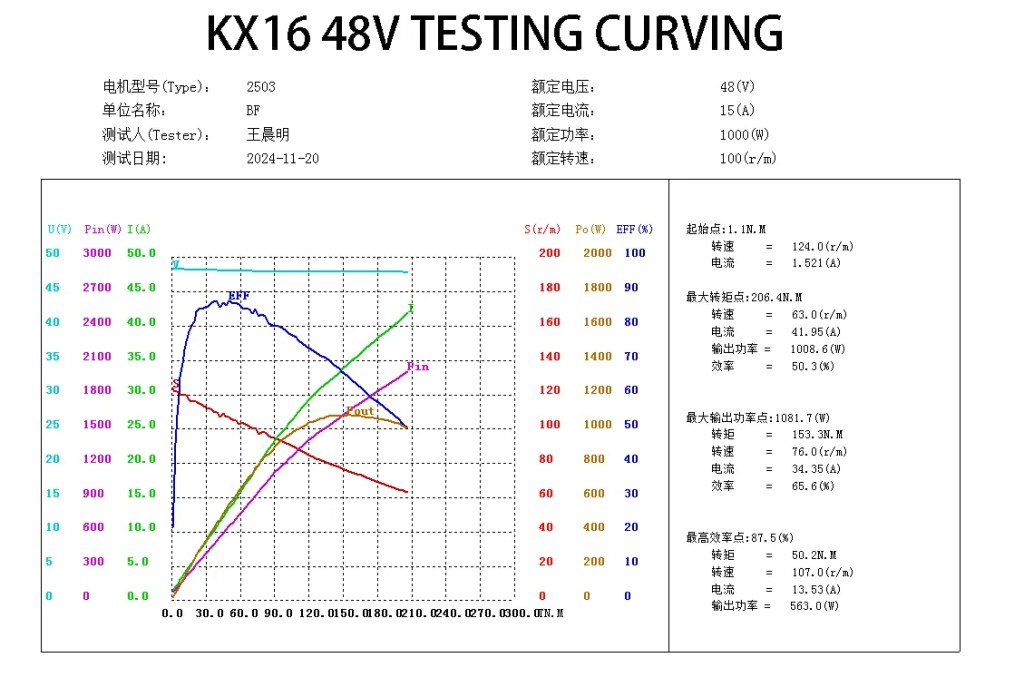

MAX SPEED 48V 120RPM

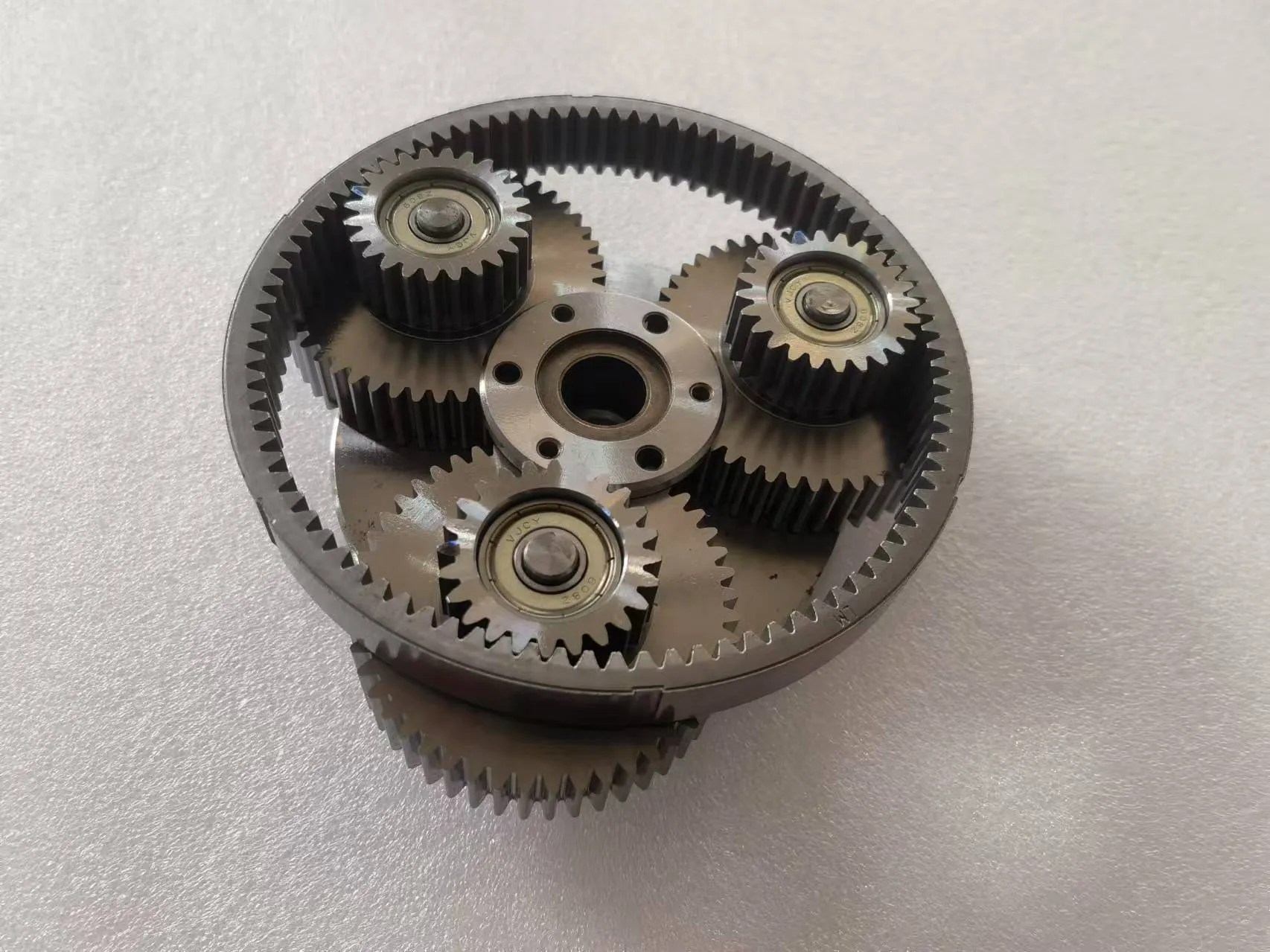

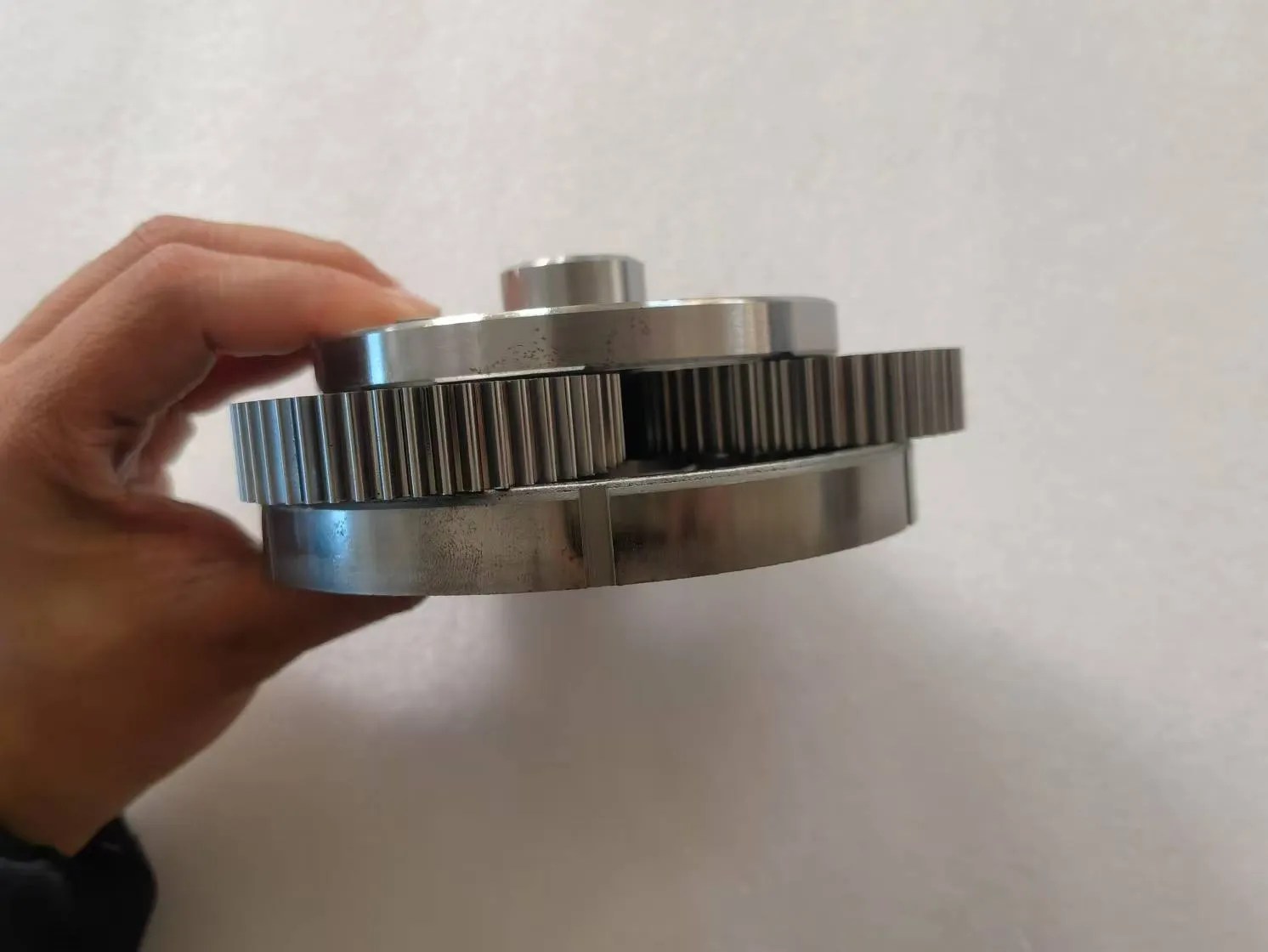

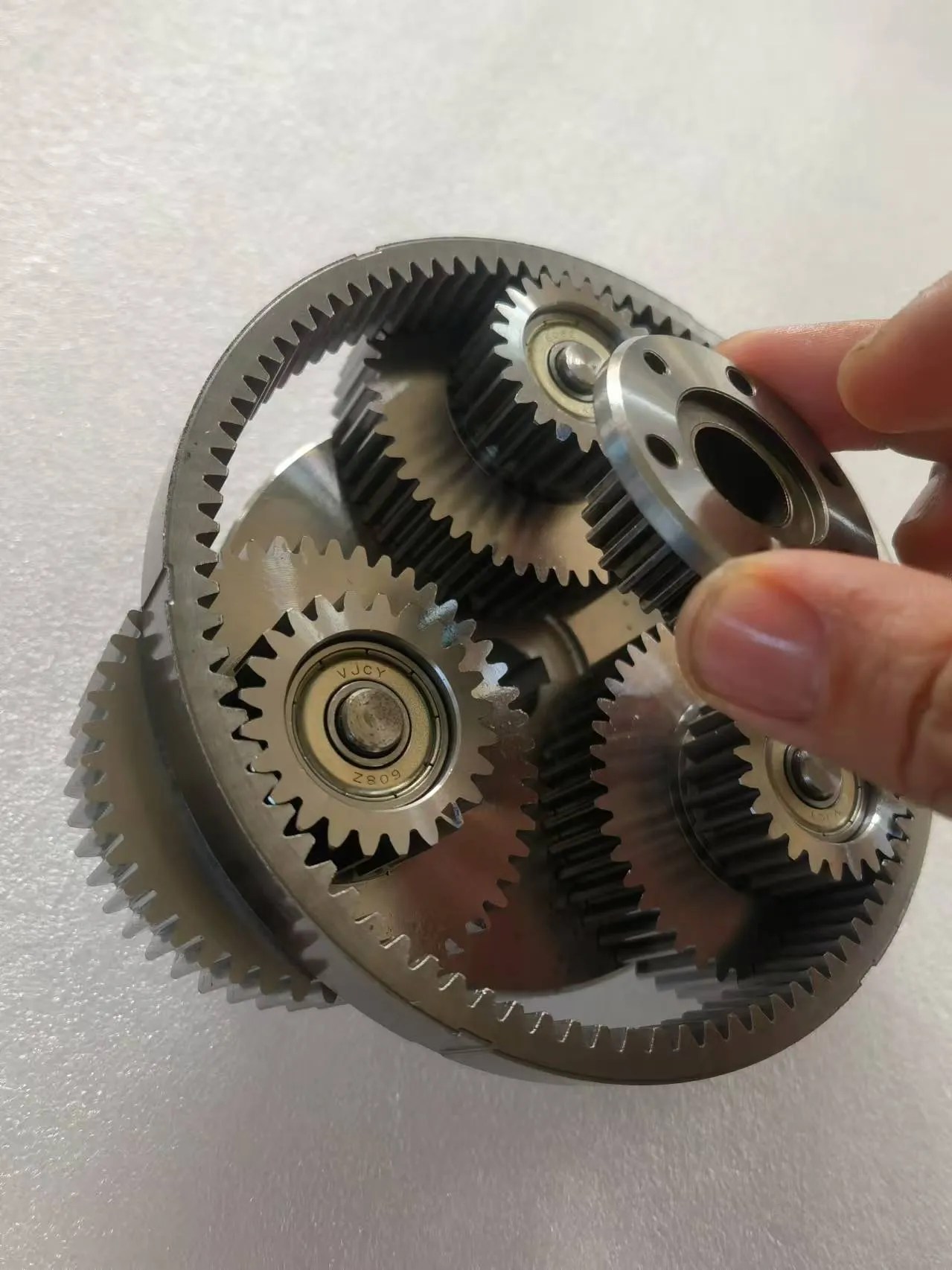

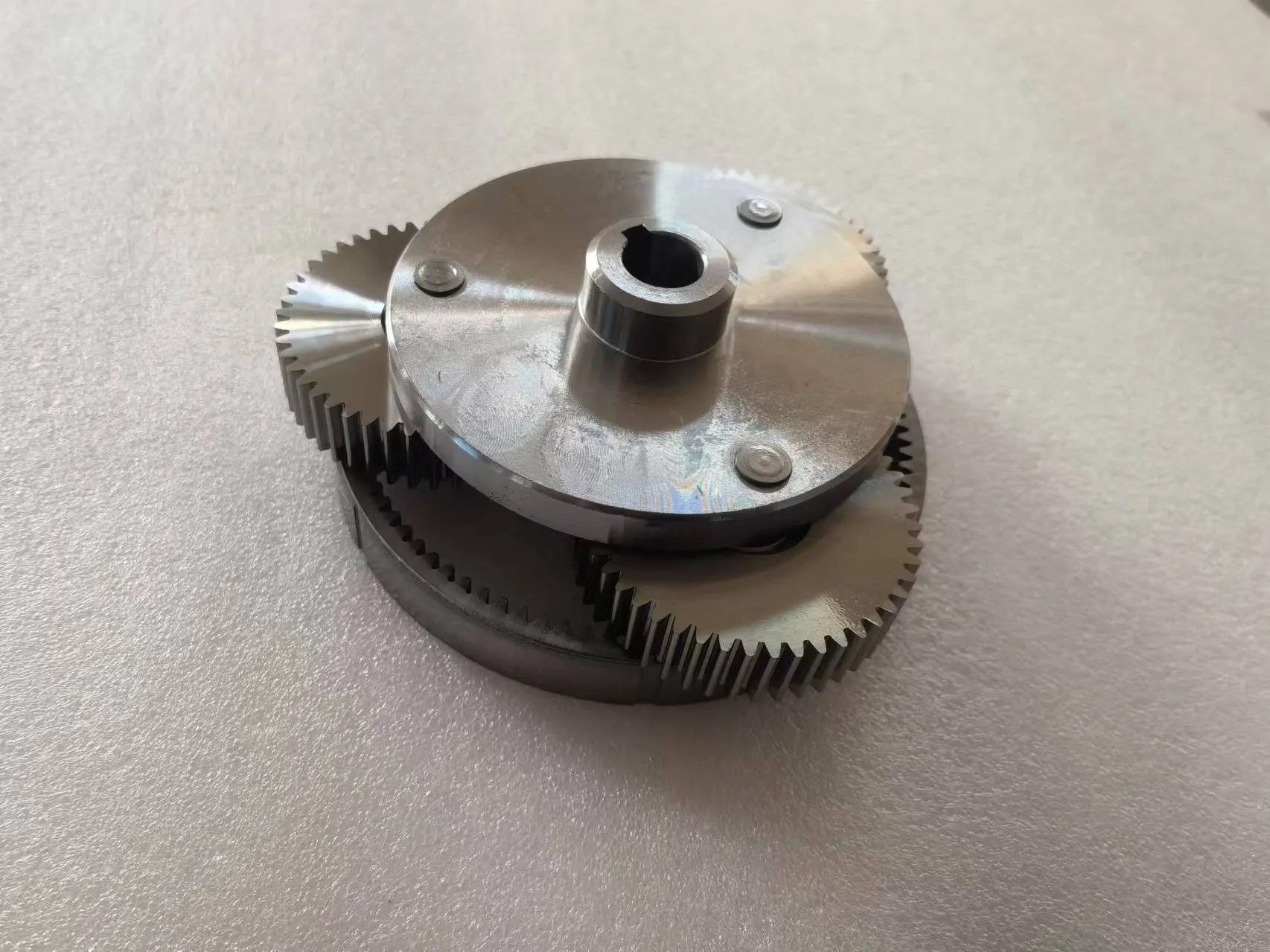

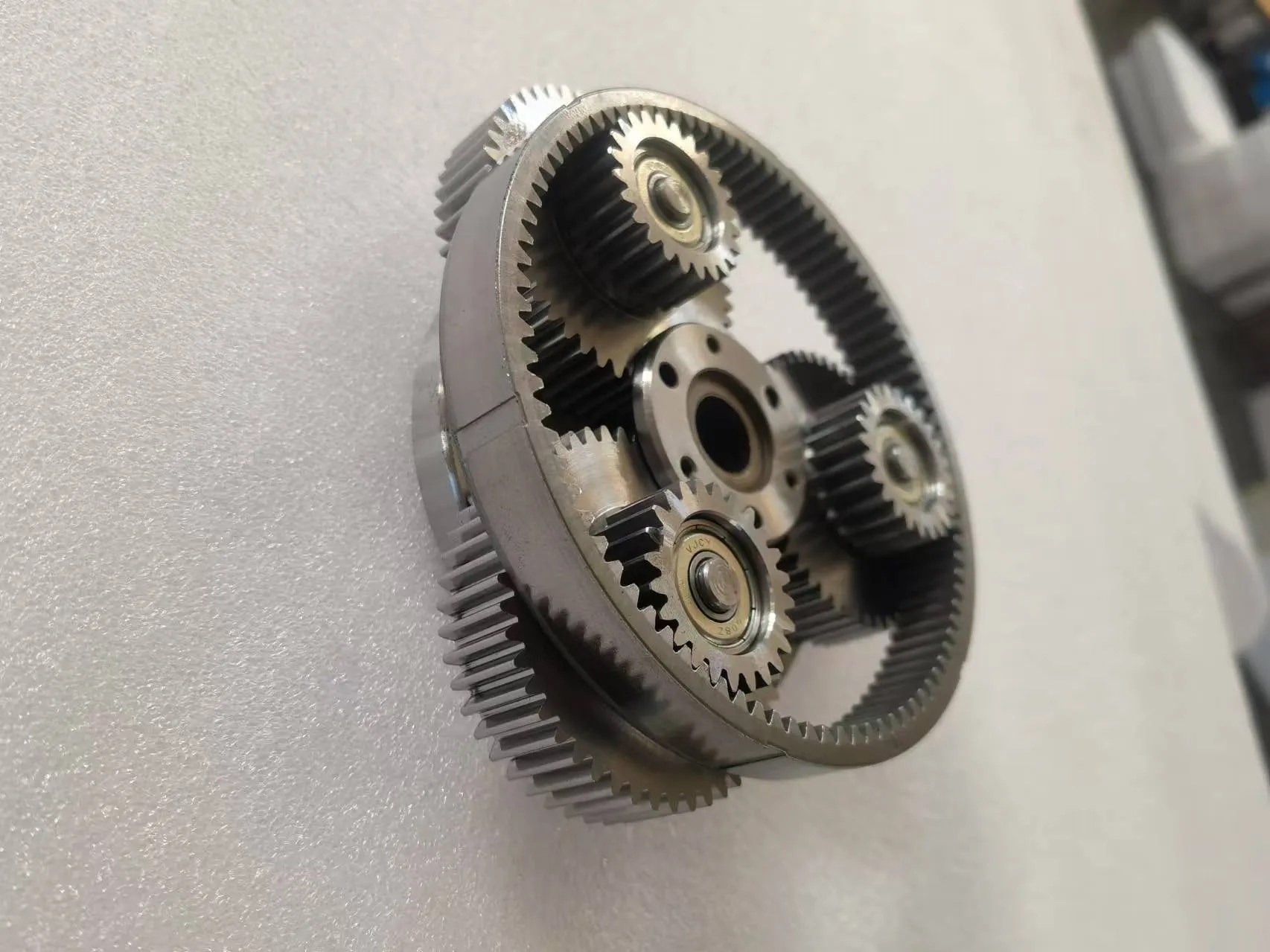

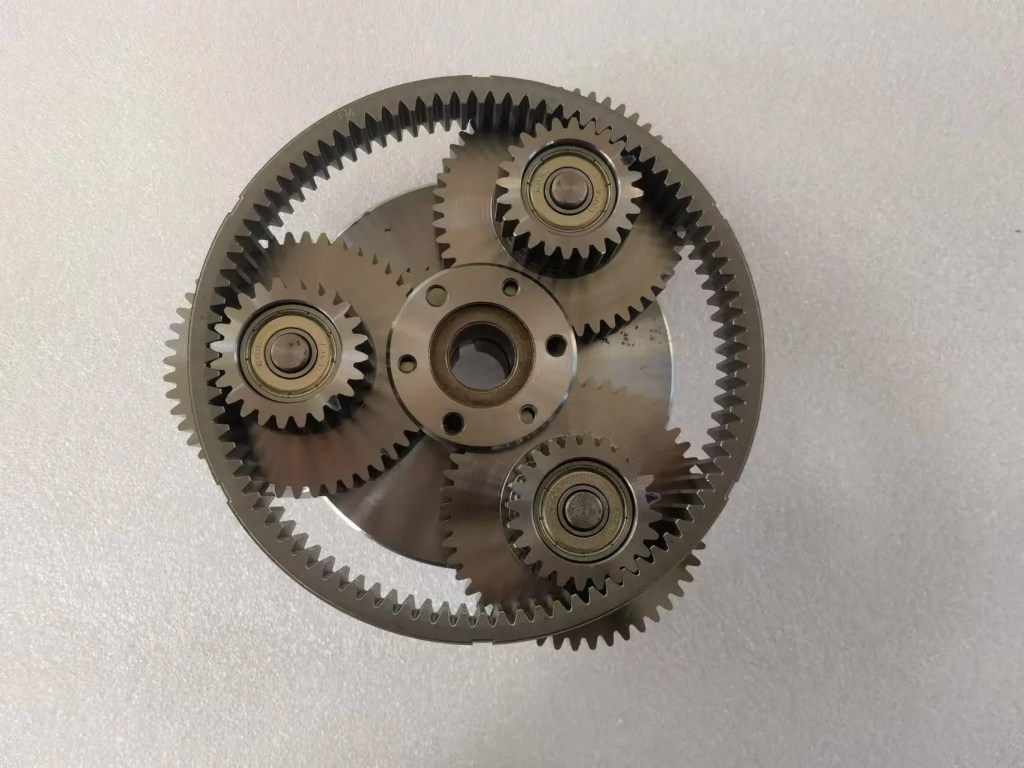

GEAR RATIO: 1:10
MAX Torque: 200N.m
Goss weight: 12kg

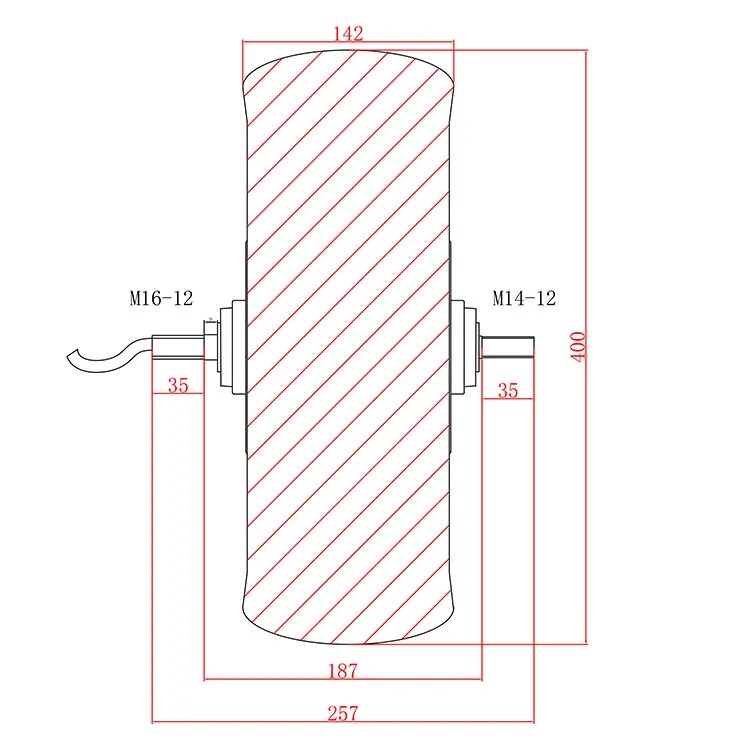

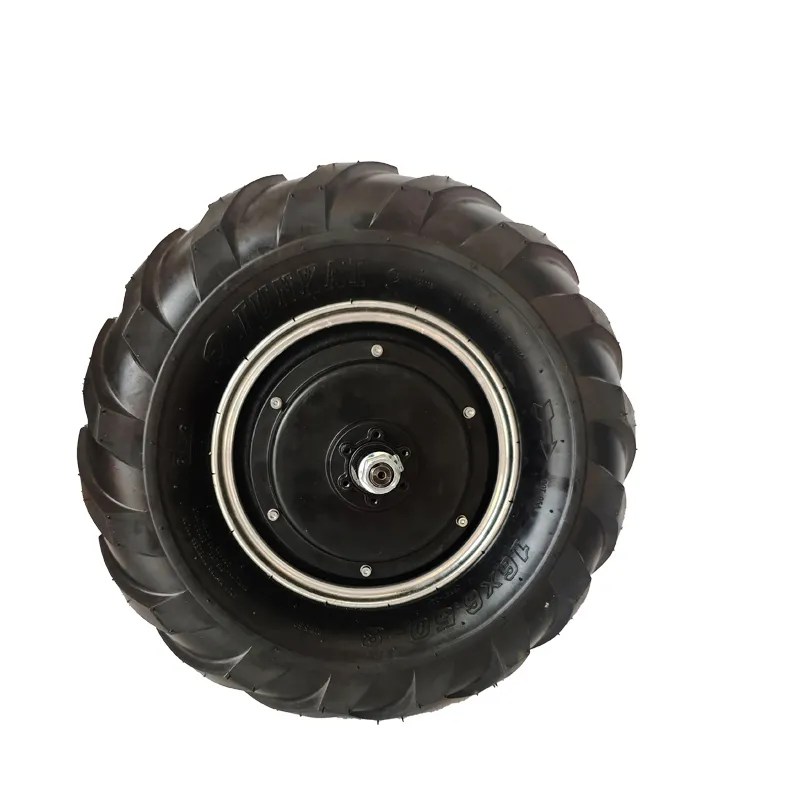

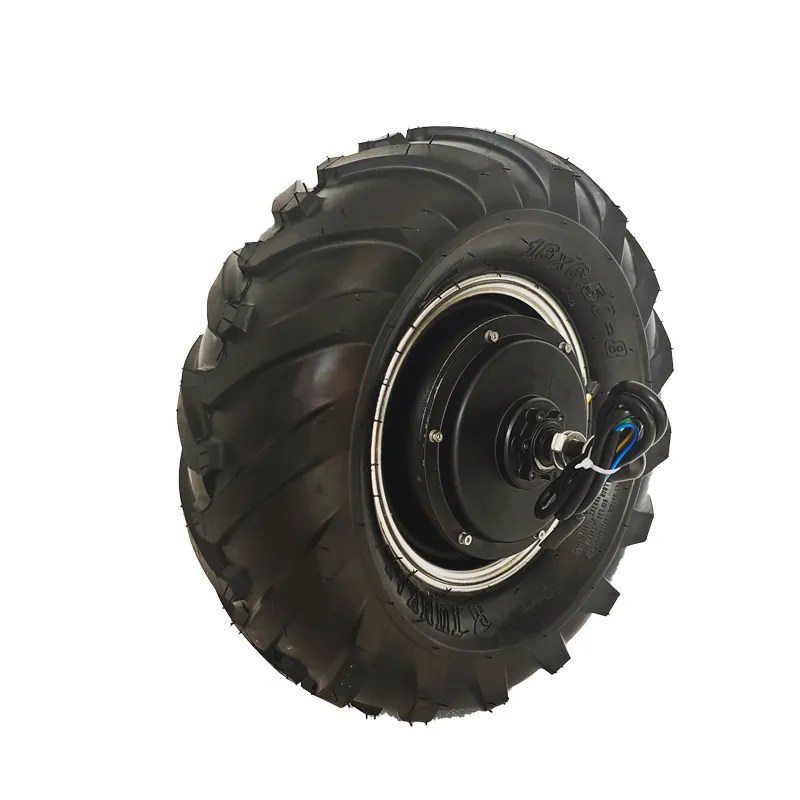

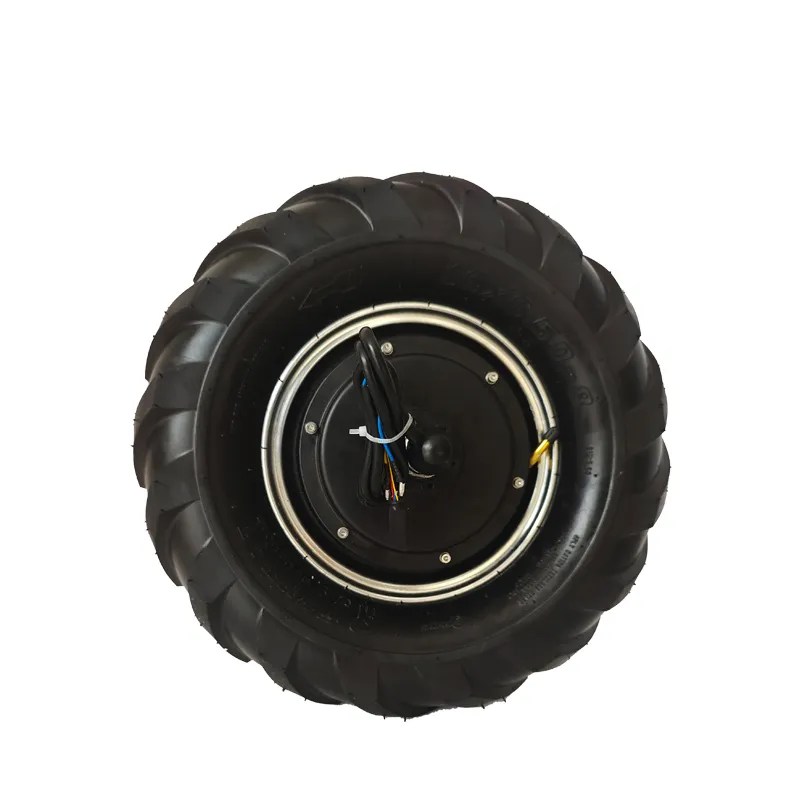

16×6.5-8 tubeless tire, 16 inch tractor tire hub motor with 1:10 high gear ratio setting, reversible, max speed can be 75RPM, 120RPM, 150RPM, max torque can be upated to 300N.M version
Category
Tags
4 inch hub motor 5 inch hub motor 6 inch hub motor 8 inch electric wheelchair motor 8 inch hub motor 8.5 inch motor 10 inch hub motor 12 inch hub motor 13 inch hub motor 14 inch hub motor 15 inch hub motor 16 inch hub motor 20 inch hub motor 28 inch electric bike conversion kit 250W electric bike conversion kit 250w motor 350w motor 500W electric bike conversion kit 500w motor 800w motor 1000W electric bike conversion kit 1000w motor 3000w motor 3000w scooter motor 3500w hub motor disc braking motor drum brake hub motor dual controllers electric motorcycle motor electric scooter motor electric scooter motor kit electric trike kit electric wheelbarrow motor electric wheelchair motor Geared motor high speed motor hub motor with encoder in wheel hub motor low speed high torque motor mono shaft motor pneumatic hub motor pu tire motor servo hub motor single shaft hub motor wheelchair motor kit
12 responses to “2025 new 1:10 high gear ratio 200N.m 16 inch tractor tire hub motor”
Do you have a distributor located in Europe ? Your hub motors are very interesting and useful and we need them in Europe . Keep up the good work and please contact us , maybe we can work out a deal to get a distributor here in eastern Europe . Thanks
Is this single shaft hub motor?
it is a dual shafts motor.
How much for 4 of the updated 300Nm versions?
how can I order this unit with the controller
We recommend you to use this controller https://www.uumotor.com/dual-drive-rs485-can-encoder-brushless-controller.html
Currently, it is not listed on our online webstore, you can contact us via email to buy them.
how can I order this unit with the controller no tire
When will this model be available for purchase in your storefront?
You can email us for the buying currently.
What is the maximum weight for this wheel? I’m looking for something that can handle 2,000 lbs / 907kg.
one wheel for 500kg is ok, but the pulling force, 2tons are ok.
