Model: MidTech A1
Price: USD199
Short description:
Rated Power: 60V 3000W
No load current:2.1A
Rated currrent:63A
Max current:100A
Rated torque:11.1N.m
N.W.:8.0kgs
G.W.:8.4kgs
Dimension:34cm*34cm*43cm
Production Period: ready to ship

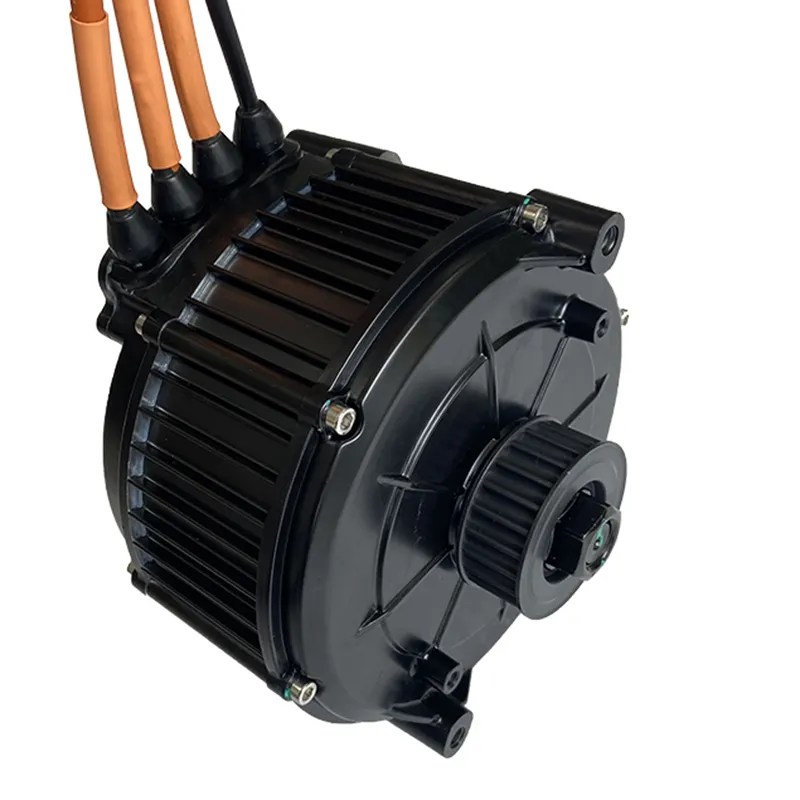

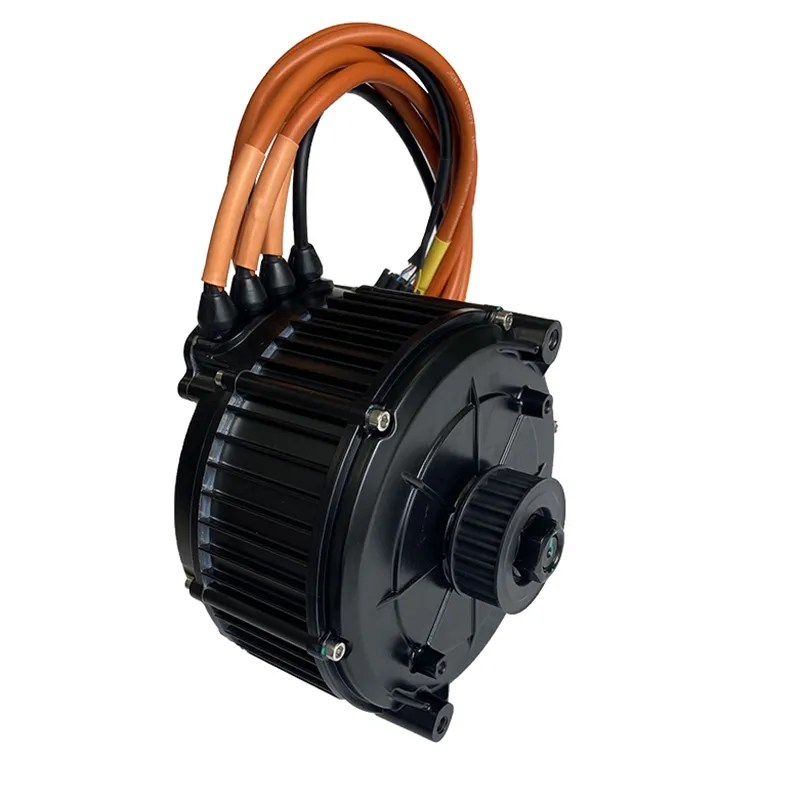

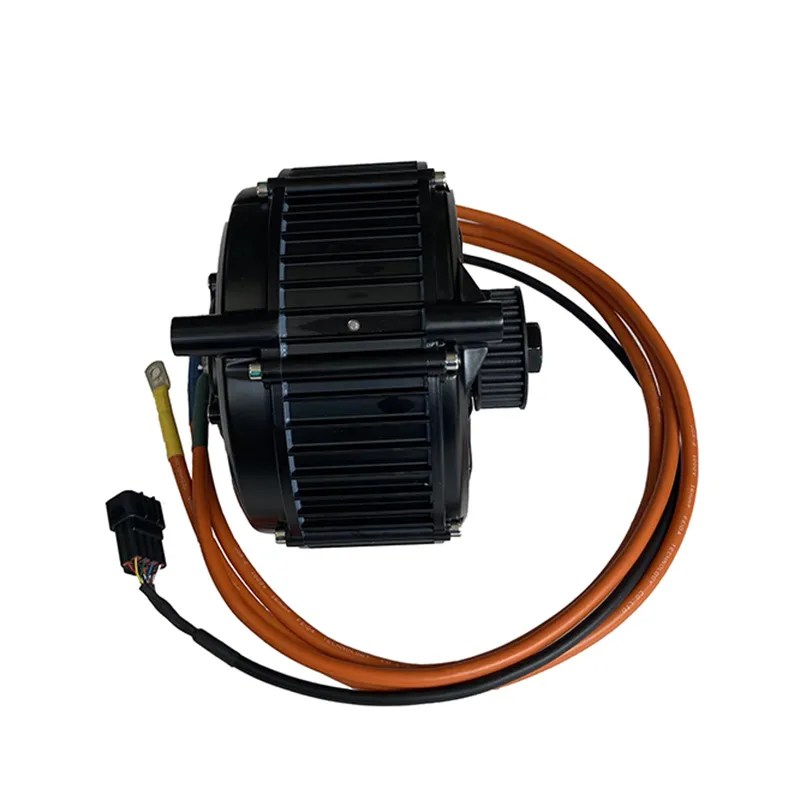

A1 standard version is 60v 3000W Mid Drive Motor, which is ready to ship, if you like to buy a 60v 3kw mid-drive motor for electric motorcycles, scooters or smaller electric cars, like ATV and so on, this brushless mid drive motor is your best choose. The motor with with hall sensors and encoder, and you can use this belt DAYCO HT POWER CARBON 560-H8M-16MM. It directly fits for SUR-RON LBX, SEGWAY X260 and SEGWAY X160.
We also have a 3kw motor drive for it. The marched 3000w mid drive motor controller is USD180 each
| 1 | Motor type | brushless dc mid-drive motor | PMSM |
| 2 | Rated Power | 3000w | peak power 7000w |
| 3 | Rated Voltage | 60v DC | ok to customize 48-96v |
| 4 | Rated Speed | 3400rpm | weak magnetic fields up to a maximum speed of 6500rpm |
| 5 | Max efficiency | ≥94% | |
| 6 | Max torque | ≥50nm | |
| 7 | Pole pairs | 5 | Magnet height: 30H |
| 8 | Over load time | Support long-term operation at the rated power | less than 1 minute at Twice rated power |
| 9 | Max controller Current | ≤150A | |
| 10 | winding temperature | The maximum temperature for Class F should not exceed 150 degrees Celsius | H-level supports 180 degrees |
| 11 | Sensores type | Magnetic encoder | |
| 12 | Motor power phase cable | ≥16mm² | |
| 13 | Insulation level | H | |
| 14 | Motor Weight | 8kg | |
| 15 | Waterproof grade | IP67 | |
| 16 | Cooling method | natural cooling |
How long is the delivery time ?
This 3kw mid drive motor is ready to ship, we have it in stock, usually you can get it in 10 days.
How about the warranty ?
We offer 1 year warranty for motors and controllers, but the buyer has to pay the return shipping cost for repairing or replacing a new one.
If you don’t have any knowledge on electric kits assembly, please make prudent choice to buy it or not ! There is no warranty for man-made damage!
About the shipping way?
For the small order, it is usually shipped by air express, like UPS and Fedex. And it is also ok to ship by train, truck, or sea. It depends on the gross weight of total order. It is better to discuss with us first about the shipping method
